Factory-Built Lift Stations in Sunrise Beach, MO

Factory-Built Lift Stations

Enviro-Line Co, Inc. provides factory-built lift stations in Sunrise Beach and Camden County, MO to customers seeking a reliable solution for their specific wastewater treatment needs. Not only do we thoroughly evaluate the capacity demands of your application, we provide best-in-class, turnkey solutions that function efficiently when implemented.

Get in Touch

Lift Station Overview

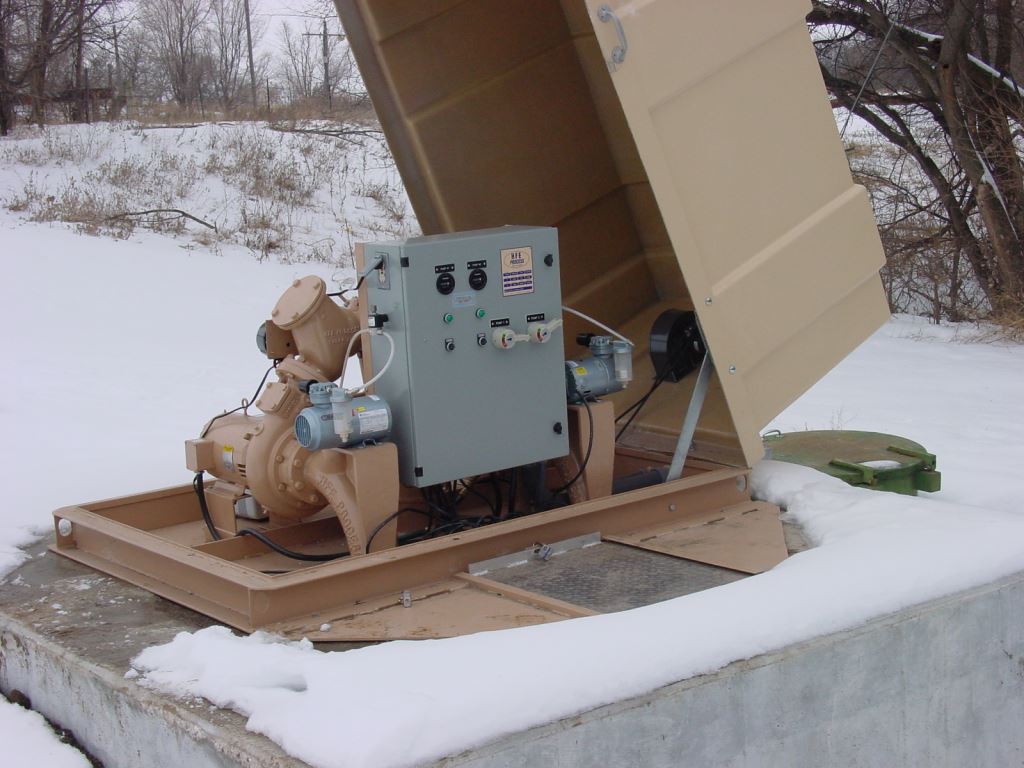

Wastewater Lift StationOriginally designed for individual subdivisions and small communities, the above-grade wastewater lift station in Sunrise Beach, MO has been popular for many years.

Situated directly over the wet well, the station’s suction pipes extend down into the sewage from the pump station. As sewage fills the wet well, a vacuum pumps sucks up sewage to the station. A water sensing probe confirms the pump is primed, and the pump starts. Typical pumping rates are up to 600-750GPM for a 500-600 home community.

An alternate option to the top-mounted design is a self-priming station. The above grade self-priming station uses the pump design itself to prime the pump. While this style of pump seems simpler, it has poor efficiency and increased operation and maintenance costs.

Regardless of the lift station type, the drawback is the same: Rags plugging a pump can create a maintenance issue. Thankfully, the use of a vortex impeller eliminates impeller plugging.

Optimal Applications

Thanks to the general reliability and high capacity of factory-built lift stations, they’re optimal in subdivision developments, smaller towns, pumping to wastewater treatment plants and schools.

Pump Design Details

  • Size ranges: 4″-6″
  • Flows: +1,000GPM
  • Horsepower: 2HP to 50HP
  • Discharge pressure: 250′
  • Bearing life: 100,000 hours
  • Seals: Tungsten or Silicon Carbide
  • Motor: Class H Insulation for continuous duty
  • Motor: TEFC or ODP
  • Voltage: 208/230/480VAC or higher
  • Impellers: Multiple styles available

Site Design Details

  • Wet well diameter: 5′-8′
  • Wet well depth: Up to 20′
  • Force main size: Not less than 4″

Lift Station Solutions

Our comprehension of wastewater lift stations makes Enviro-Line Co, Inc. the leading authority on supplying products to wastewater control systems of all types and capacities. Contact us today at 573-873-5182 to discuss your need for a high-capacity factory-built or valve vault lift station.
